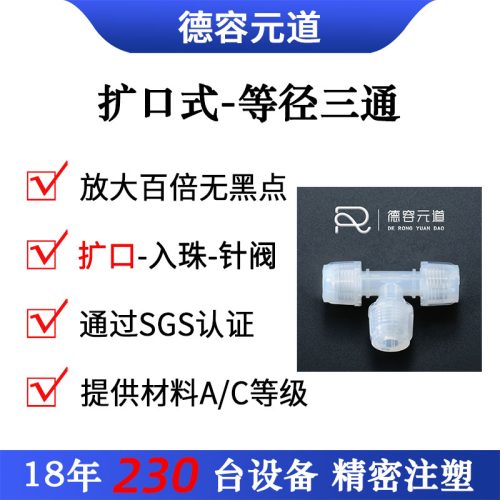

Tee Union
High purity PFA tube fittings are used in semiconductor/biomedical/energy chemical/photovoltaic solar/liquid crystal panel/clean new energy industries, etc. Derong Yuandao provides high quality products for companies that need high purity fluorine products.
Material: PFA
Interface: Flare connection
Maximum operating temperature: 260°C
Maximum operating pressure: 0.7MPa
Transmission medium: liquid/gas
Conductivity: Insulation
Friction coefficient: glossy self-lubricating
Mechanical strength: large tensile toughness, not easy to fracture
Conformity certification: SEMIF57
| No. | Type | Fitting Tube OD(inch) | Fitting Tube OD(mm) | A | B | C | D | E |
| 1 | DRYD-A-U-I-T-5 | 1 | 25.4×22.2 | 138.9 | 69.45 | 49.8 | 22.2 | 32.2 |
| 2 | DRYD-A-U-I-T-4 | 3/4 | 19×15.8 | 117.9 | 58.95 | 39.8 | 15.85 | 24.8 |
| 3 | DRYD-A-U-I-T-3 | 1/2 | 12.7×9.5 | 89.8 | 44.9 | 30.8 | 9.5 | 17 |
| 4 | DRYD-A-U-I-T-2 | 3/8 | 9.53×6.33 | 77.7 | 38.85 | 27 | 6.33 | 13.8 |
| 5 | DRYD-A-U-I-T-1 | 1/4 | 6.35×3.95 | 61 | 30.5 | 19.5 | 3.95 | 11 |
