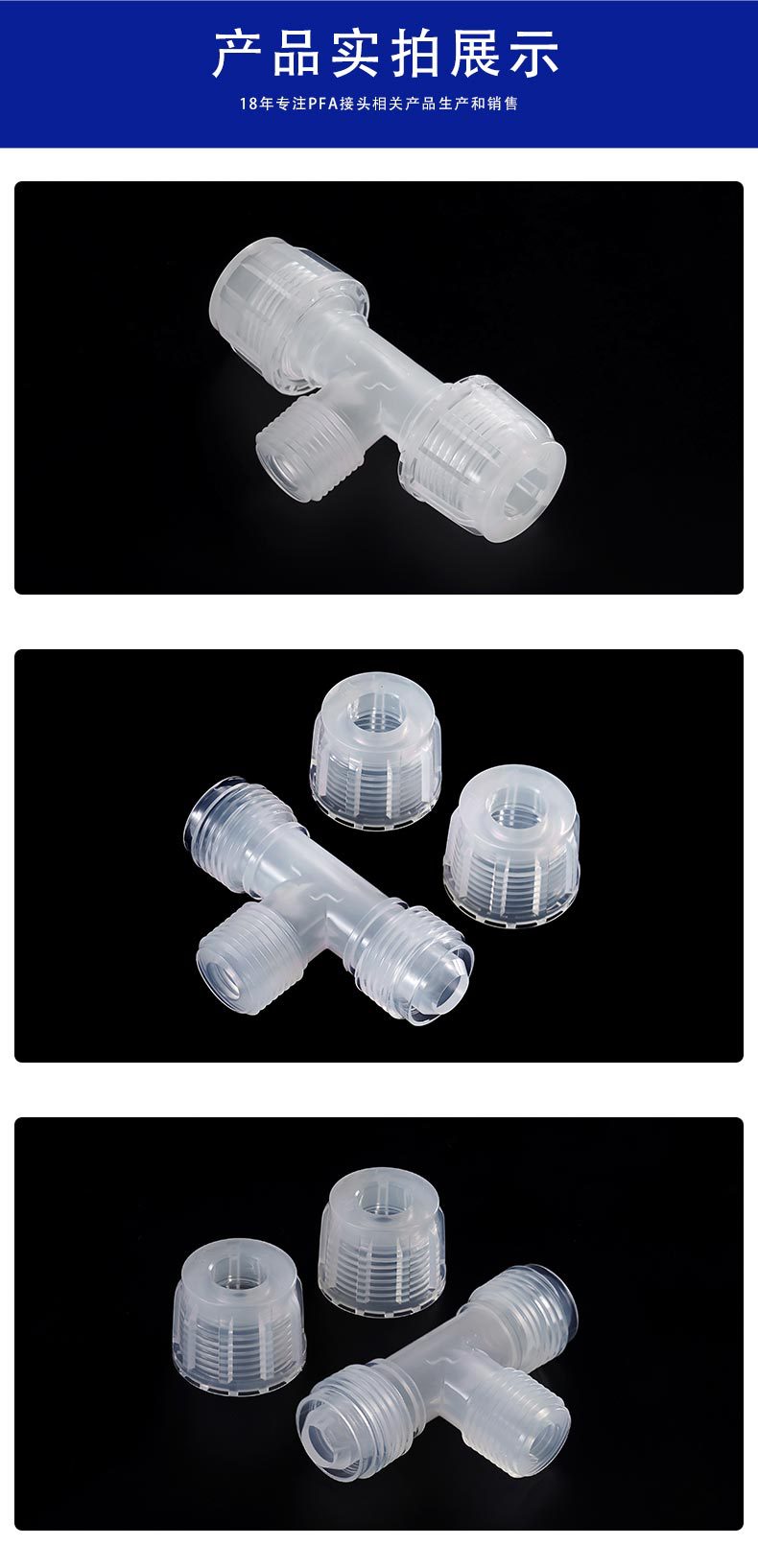

PFA Tee Male Connector
High purity PFA tube fittings are used in semiconductor/biomedical/energy chemical/photovoltaic solar/liquid crystal panel/clean new energy industries, etc. Derong Yuandao provides high quality products for companies that need high purity fluorine products.
Material: PFA
Interface: Flare connection
Maximum operating temperature: 260°C
Maximum operating pressure: 0.7MPa
Transmission medium: liquid/gas
Conductivity: Insulation
Friction coefficient: glossy self-lubricating
Mechanical strength: large tensile toughness, not easy to fracture
Conformity certification: SEMIF57
德容元道牌PFA接头与目前市场上其他制造商生产的产品相比具有以下优势：密封性更好,更紧密的粘合和更长的使用寿命,更高的纯度
PFA（全氟烷氧基）是一种高性能的氟塑料，具有卓越的耐化学性、耐热性、电绝缘性和低摩擦系数。由于其独特的性能，PFA在许多高端应用中得到了广泛的应用。然而，PFA的开模注塑费用和价格是许多制造商关心的...
PFA注塑件因其耐高温、耐腐蚀、高纯度等特性，广泛应用于半导体、医疗、生物制药、化工、电子电气、食品、新能源等行业，如化学管道、泵体、医疗导管、电缆绝缘层等。
注塑工艺难点在于高熔融温度、流动性低、...
未来，氟材料注塑件将因其卓越的性能在多个行业发挥越来越重要的作用，随着技术的进步和市场需求的变化，氟材料注塑件的应用范围将持续扩展，向着更加高效、环保和多功能化的方向发展。
氟塑料（含氟聚合物）因其耐高温、耐腐蚀、电绝缘性强、低摩擦系数等优异性能，在多个行业得到广泛应用。常见类型包括PTFE（聚四氟乙烯）、PVDF（聚偏氟乙烯）、FEP（全氟乙丙烯）、PFA（全氟烷氧基树...
| No. | Type | Fitting Tube OD(inch) X-NPT-Y | Fitting Tube OD(mm) X-NPT-Y | A（mm） | B(mm) | C(mm) | D(mm) | E(mm) | NPT(英寸） |
| 1 | DRYD-A-Y-I-T-M-5-5-5 | 1-1NPT-1 | 25.4×22.2 | 132.4 | 45.6 | 49.8 | 22.2 | 22.2 | 1 |
| 2 | DRYD-A-Y-R-T-M-4-5-4 | 3/4-1NPT-3/4 | 19×15.8 | 111.7 | 40.9 | 39.8 | 15.8 | 22.2 | 1 |
| 3 | DRYD-A-Y-R-T-M-5-4-5 | 1-3/4NPT-1 | 25.4×22.2 | 132.4 | 41.95 | 49.8 | 22.2 | 15.8 | 3/4 |
| 4 | DRYD-A-Y-I-T-M-4-4-4 | 3/4-3/4NPT-3/4 | 19×15.8 | 111.7 | 37.25 | 39.8 | 15.8 | 15.8 | 3/4 |
| 5 | DRYD-A-Y-R-T-M-3-4-3 | 1/2-3/4NPT-1/2 | 12.7×9.5 | 86 | 32.35 | 30.8 | 9.5 | 15.8 | 3/4 |
| 6 | DRYD-A-Y-R-T-M-4-3-4 | 3/4-1/2NPT-3/4 | 19×15.8 | 111.7 | 36.4 | 39.8 | 15.8 | 12 | 1/2 |
| 7 | DRYD-A-Y-I-T-M-3-3-3 | 1/2-1/2NPT-1/2 | 12.7×9.5 | 86 | 31.5 | 30.8 | 9.5 | 9.5 | 1/2 |
| 8 | DRYD-A-Y-R-T-M-2-3-2 | 3/8-1/2-NPT3/8 | 9.53×6.33 | 73 | 29.9 | 27 | 6.33 | 9.5 | 1/2 |
| 9 | DRYD-A-Y-I-T-M-3-2-3 | 1/2-3/8NPT-1/2 | 12.7×9.5 | 86 | 27.6 | 30.8 | 9.5 | 9.5 | 3/8 |
| 10 | DRYD-A-Y-I-T-M-2-2-2 | 3/8-3/8NPT-3/8 | 9.53×6.33 | 73 | 26 | 27 | 6.33 | 6.33 | 3/8 |
| 11 | DRYD-A-Y-R-T-M-1-2-1 | 1/4-3/8NPT-1/4 | 6.35×3.95 | 57.6 | 22.6 | 19.5 | 3.95 | 6.33 | 3/8 |
| 12 | DRYD-A-Y-I-T-M-2-1-2 | 3/8-1/4NPT-3/8 | 9.53×6.33 | 73 | 25.9 | 27 | 6.33 | 6.33 | 1/4 |
| 13 | DRYD-A-Y-I-T-M-1-1-1 | 1/4-1/4NPT-1/4 | 6.35×3.95 | 57.6 | 22.5 | 19.5 | 3.95 | 3.95 | 1/4 |
| 14 | DRYD-A-Y-R-T-M-5-3-5 | 1-1/2NPT-1 | 25.4×22.2 | 132.4 | 41.1 | 49.8 | 22.2 | 12 | 3/8 |
| 15 | DRYD-A-Y-R-T-M-4-2-4 | 3/4-3/8NPT-3/4 | 19×15.8 | 111.7 | 32.5 | 39.8 | 15.8 | 9.5 | 3/8 |
| 16 | DRYD-A-Y-R-T-M-3-1-3 | 1/2-1/4NPT-1/2 | 12.7×9.5 | 86 | 27.5 | 30.8 | 9.5 | 6.33 | 1/4 |
| 17 | DRYD-A-Y-R-T-M-3-5-3 | 1/2-1NPT-1/2 | 12.7×9.5 | 86 | 38 | 30.8 | 9.5 | 22.2 | 1 |
| 18 | DRYD-A-Y-R-T-M-2-4-2 | 3/8-3/4NPT-3/8 | 9.53×6.33 | 73 | 32.25 | 27 | 6.33 | 15.8 | 3/4 |
| 19 | DRYD-A-Y-R-T-M-1-3-1 | 1/4-1/2NPT-1/4 | 6.35×3.95 | 57.6 | 27.9 | 19.5 | 3.95 | 12 | 1/2 |
