首页 » PFA flare fittings » PFA straight male connector

Straight Male Connector

High purity PFA tube fittings are used in semiconductor/biomedical/energy chemical/photovoltaic solar/liquid crystal panel/clean new energy industries, etc. Derong Yuandao provides high quality products for companies that need high purity fluorine products.

Material: PFA

Interface: Flare connection

Maximum operating temperature: 260°C

Maximum operating pressure: 0.7MPa

Transmission medium: liquid/gas

Conductivity: Insulation

Friction coefficient: glossy self-lubricating

Mechanical strength: large tensile toughness, not easy to fracture

Conformity certification: SEMIF57

宜泽模具成功生产PFA管件新样品

德容元道牌PFA接头与目前市场上其他制造商生产的产品相比具有以下优势：密封性更好,更紧密的粘合和更长的使用寿命,更高的纯度

-PFA接头

PFA开模注塑费用是多少？

PFA（全氟烷氧基）是一种高性能的氟塑料，具有卓越的耐化学性、耐热性、电绝缘性和低摩擦系数。由于其独特的性能，PFA在许多高端应用中得到了广泛的应用。然而，PFA的开模注塑费用和价格是许多制造商关心的...

产品应用

PFA氟材料注塑的应用

PFA注塑件因其耐高温、耐腐蚀、高纯度等特性，广泛应用于半导体、医疗、生物制药、化工、电子电气、食品、新能源等行业，如化学管道、泵体、医疗导管、电缆绝缘层等。注塑工艺难点在于高熔融温度、流动性低、...

专利认证

氟材料注塑件的未来发展

未来，氟材料注塑件将因其卓越的性能在多个行业发挥越来越重要的作用，随着技术的进步和市场需求的变化，氟材料注塑件的应用范围将持续扩展，向着更加高效、环保和多功能化的方向发展。

gallery1

氟塑料：特性、应用及未来发展趋势

氟塑料（含氟聚合物）因其耐高温、耐腐蚀、电绝缘性强、低摩擦系数等优异性能，在多个行业得到广泛应用。常见类型包括PTFE（聚四氟乙烯）、PVDF（聚偏氟乙烯）、FEP（全氟乙丙烯）、PFA（全氟烷氧基树...

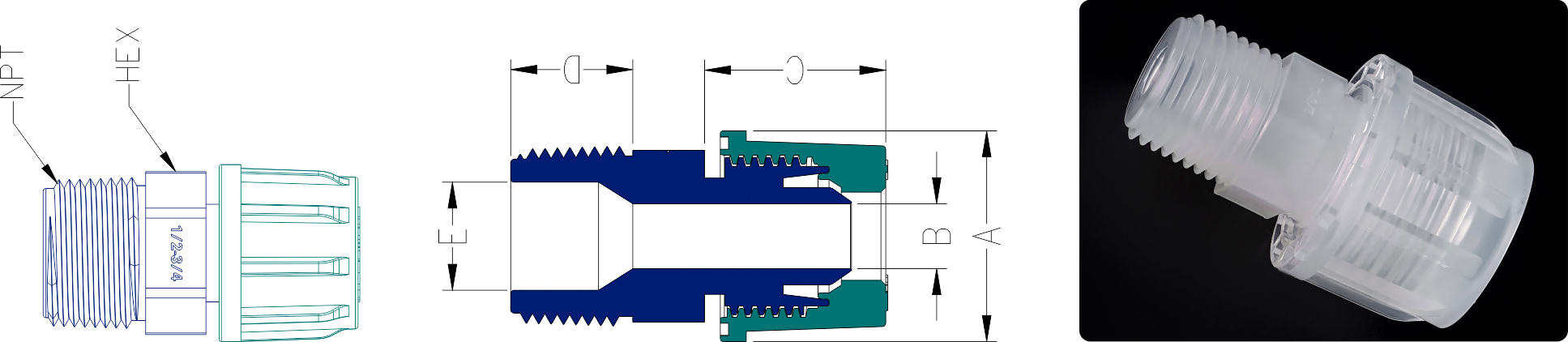

No.	Type	Fitting Tube OD(inch)	Fitting Tube OD(mm)	A	B	C	D	E	HEX	NPT(inch）
1	DRYD-A-Y-I-H-M-5-5	1″-1NPT	25.4×22.2	49.8	22.2	39.1	21.5	22.2	10.5×32.1	1
2	DRYD-A-Y-R-H-M-4-5	3/4-1NPT	19×15.8	39.8	15.8	34.05	21.5	22.2	10.5×32.1	1
3	DRYD-A-Y-R-H-M-5-4	1-3/4NPT	25.4×22.2	49.8	22.2	39.1	17.85	15.8	10.5×32.1	3/4
4	DRYD-A-Y-I-H-M-4-4	3/4-3/4NPT	19×15.8	39.8	15.8	34.05	17.85	15.8	10.5×25.1	3/4
5	DRYD-A-Y-R-H-M-3-4	1/2-3/4NPT	12.7×9.5	30.8	9.5	26.5	17.85	15.8	10.5×25.1	3/4
6	DRYD-A-Y-R-H-M-4-3	3/4-1/2NPT	19×15.8	39.8	15.8	34.05	17	12	10.5×23.9	1/2
7	DRYD-A-Y-I-H-M-3-3	1/2-1/2NPT	12.7×9.5	30.8	9.5	26.5	17	9.5	7.2×19.4	1/2
8	DRYD-A-Y-R-H-M-2-3	3/8-1/2MPT	9.53×6.33	27	6.33	22.2	17	9.5	7.0×19.4	1/2
9	DRYD-A-Y-R-H-M-3-2	1/2-3/8NPT	12.7×9.5	30.8	9.5	26.5	13.1	9.5	7.2×18.2	3/8
10	DRYD-A-Y-I-H-M-2-2	3/8-3/8NPT	9.53×6.33	27	6.33	22.2	13.1	6.33	7.0×17.2	3/8
11	DRYD-A-Y-R-H-M-1-2	1/4-3/8NPT	6.35×3.95	19.5	3.95	17.8	13.1	6.33	7.2×17.2	3/8
12	DRYD-A-Y-R-H-M-2-1	3/8-1/4NPT	9.53×6.33	27	6.33	22.2	13	6.33	7.0×17.2	1/4
13	DRYD-A-Y-I-H-M-1-1	1/4-1/4NPT	6.35×3.95	19.5	3.95	17.8	13	3.95	7.2×13.6	1/4
14	DRYD-A-Y-R-H-M-5-3	1-1/2NPT	25.4×22.2	49.8	22.2	39.1	17	12	10.5×32.1	1/2
15	DRYD-A-Y-R-H-M-4-2	3/4-3/8NPT	19×15.8	39.8	15.8	34.05	13.1	9.5	10.5×23.9	3/8
16	DRYD-A-Y-R-H-M-3-1	1/2-1/4NPT	12.7×9.5	30.8	9.5	26.5	13	6.33	7.2×18.2	1/4
17	DRYD-A-Y-R-H-M-3-5	1/2-1MPT	12.7×9.5	30.8	9.5	26.5	21.5	22.2	10.5×25.1	1
18	DRYD-A-Y-R-H-M-2-4	3/8-3/4NPT	9.53×6.33	27	6.33	22.2	17.85	15.8	7×19.4	3/4
19	DRYD-A-Y-R-H-M-1-3	1/4-1/2NPT	6.35×3.95	19.5	3.95	17.8	17	9.5	7.2×17.2	1/2
